Double your VRAM capacity for AI, machine learning, and professional workloads
Our RTX 4090 48GB upgrade utilizes authentic full-performance AD102-300-A1 cores. The same top-tier consumer specification used in US/EU RTX 4090 cards. Unlike competing offerings that often use lower performing Chinese market variants (RTX 4090-D with AD102-250-A1 cores), our upgrades boast the use of full variant AD102-300-A1 4090 cores.

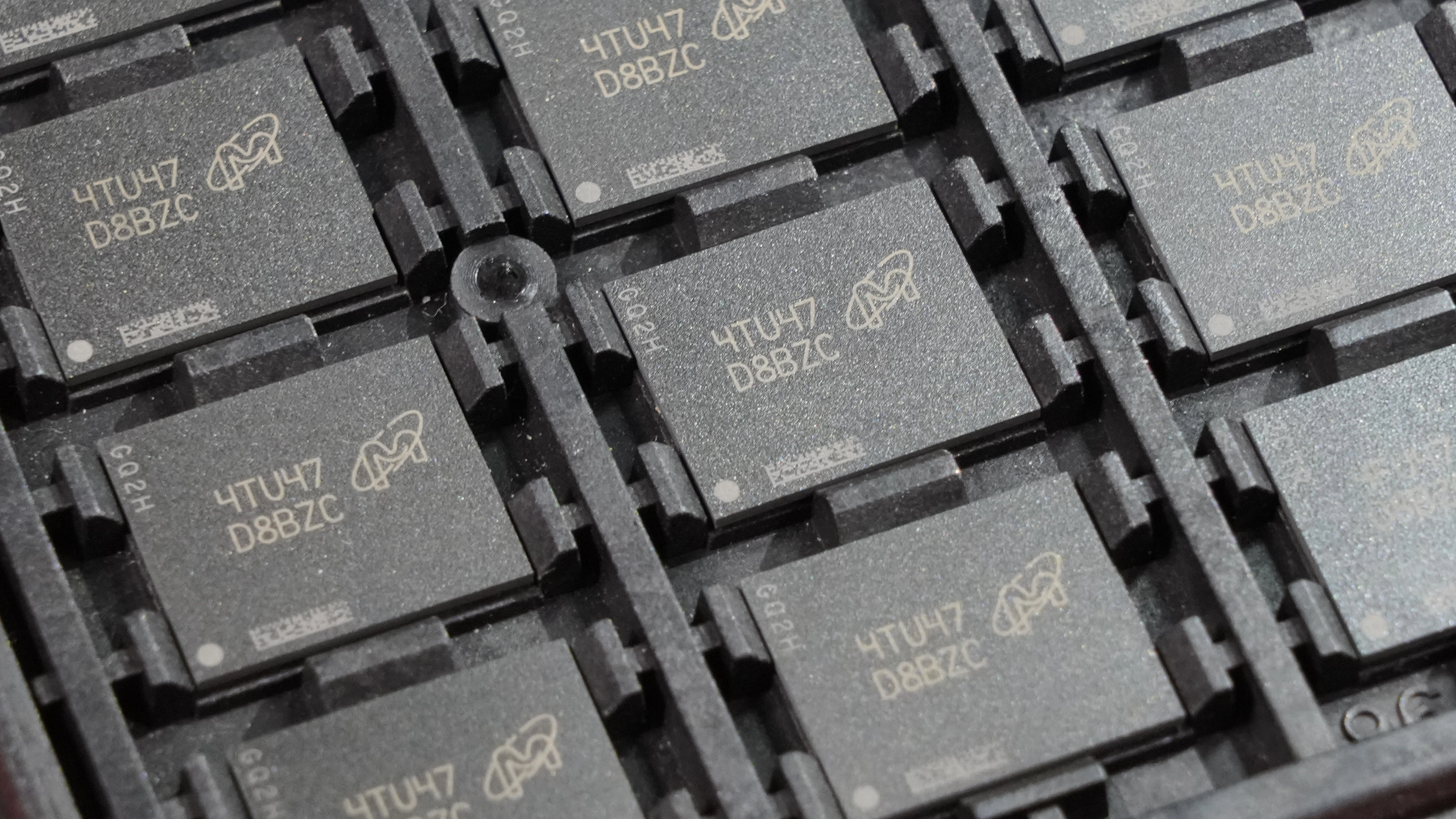

Memory architecture follows NVIDIA's original reference (NVIDIA PG139) design specifications, utilizing Micron OEM-certified GDDR6X modules to preserve the full real world 900 GB/s bandwidth. Our implementation leverages NVIDIA engineering and diagnostic resources, along with industry-standard high speed PCB design practices to ensure optimal signal integrity across the entire memory subsystem, GPU core, and PCIe interface.

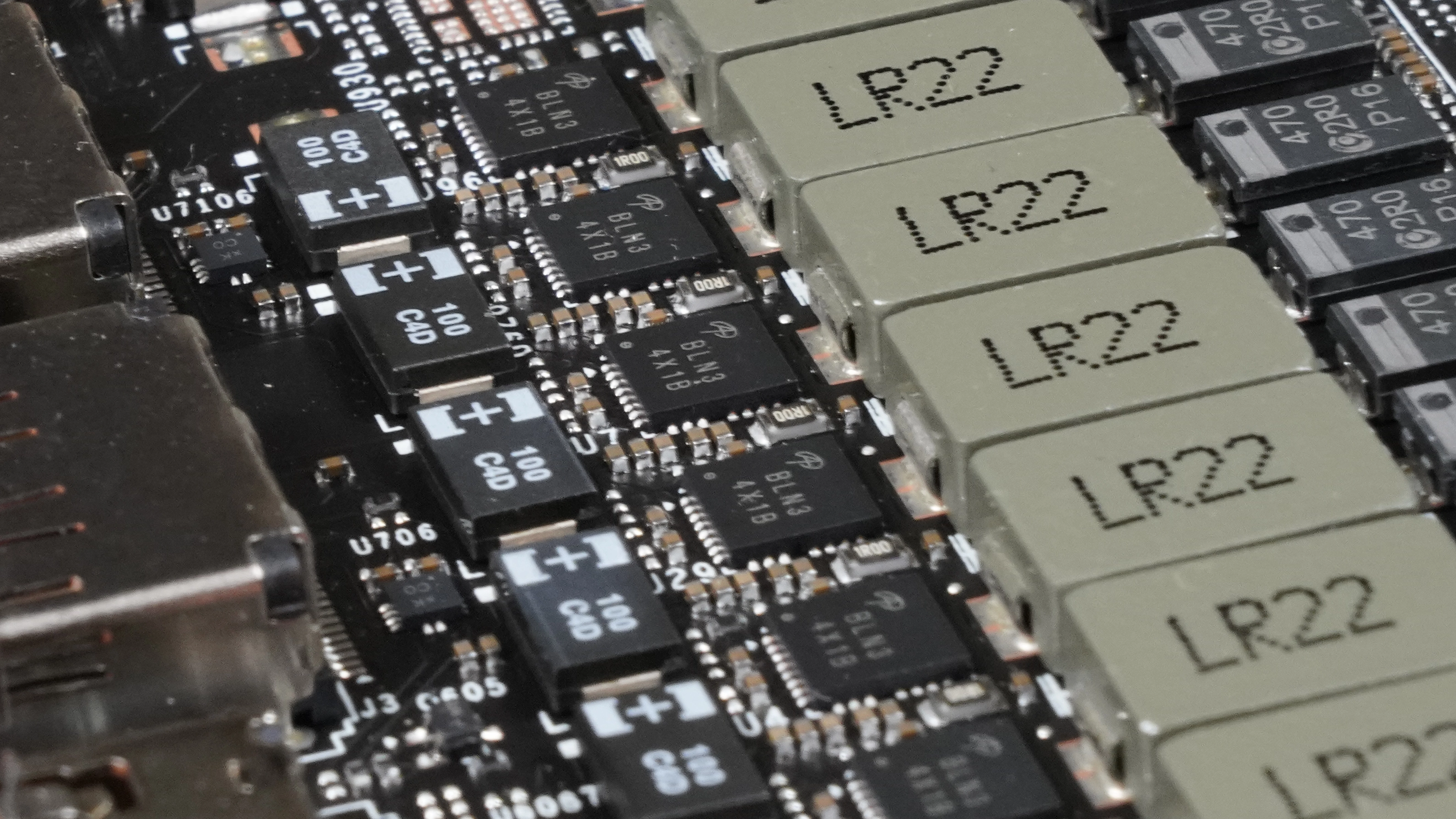

Power delivery utilizes a 13-phase design with BLN3 power stages (55A each), providing robust 450W TGP capability for sustained full-load operation. This power architecture ensures stable performance under the most demanding AI and machine learning workloads in your production enviroment.

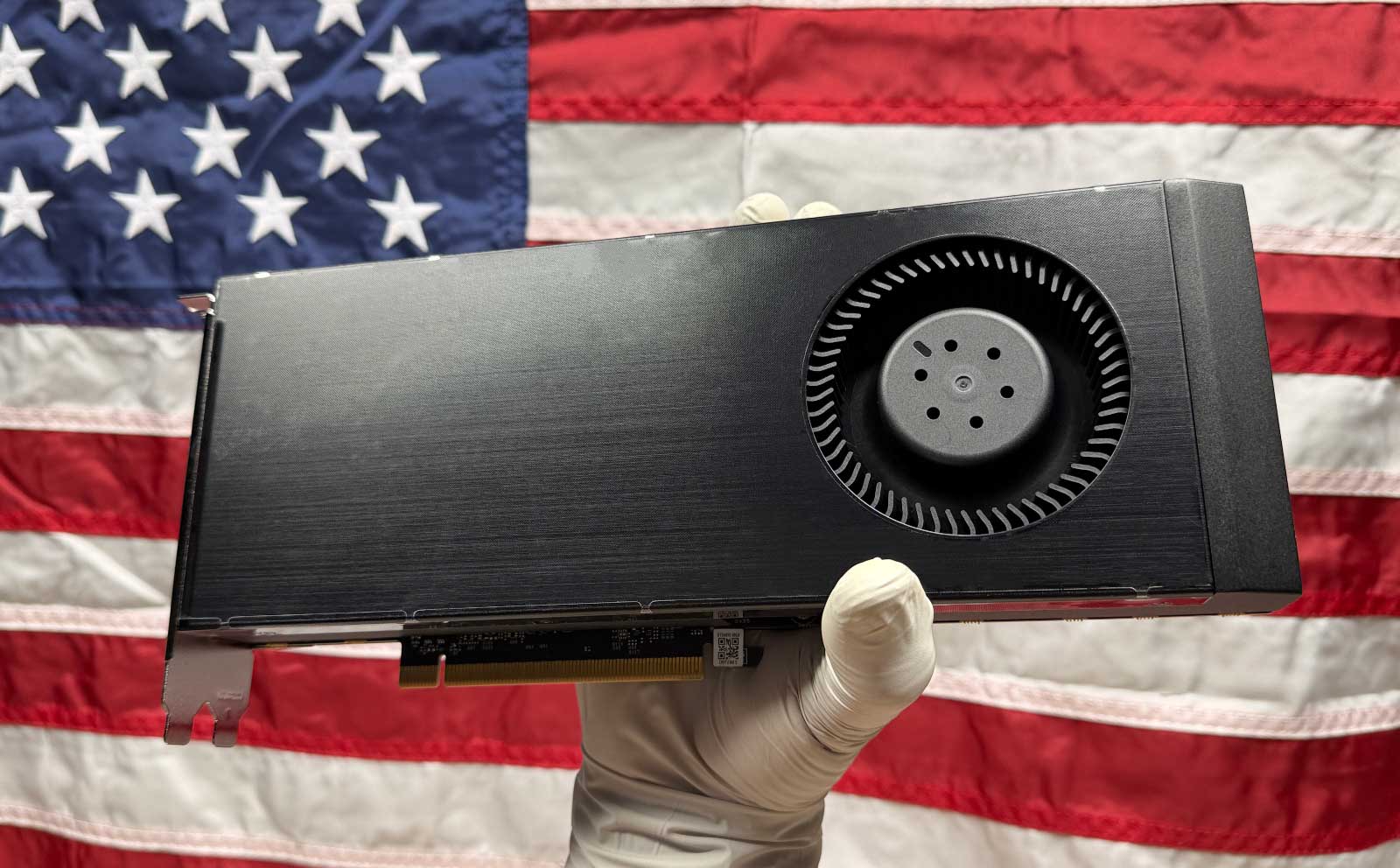

The cooling solution features a dual-slot form factor identical to professional A6000/A100 cards, designed for high-density rack installations. The robust thermal management system combines substantial thermal mass with a precision double-bearing delta fan, delivering exceptional cooling performance in professional server environments.

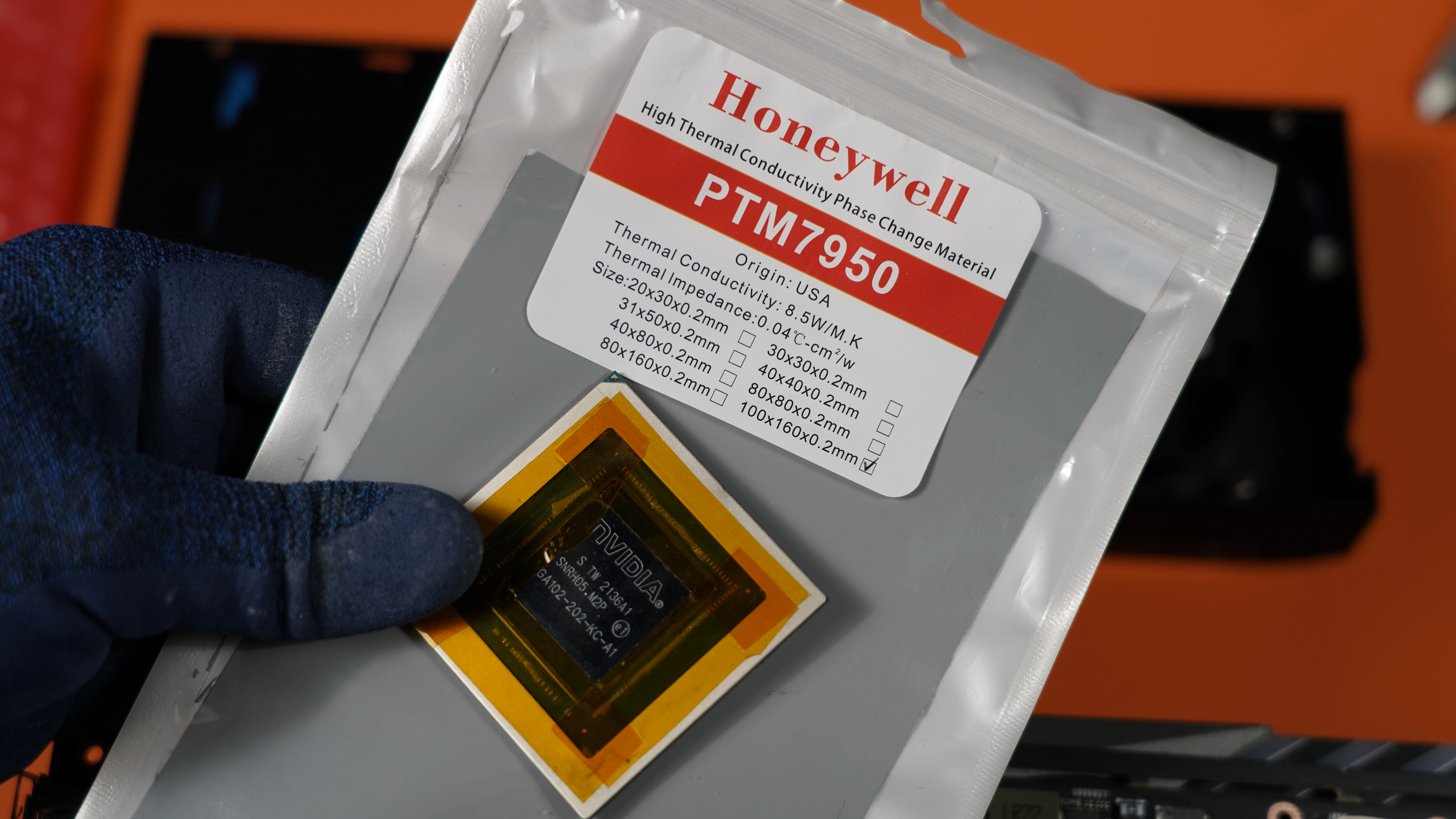

Our thermal interface upgrade option employs Honeywell PTM7950 phase-change material, providing superior heat transfer characteristics compared to traditional thermal paste. This ensures consistent and long lasting thermal performance while maintaining the GPU's original specifications throughout extended operation cycles.
Every upgraded GPU undergoes rigorous testing to ensure reliability and performance

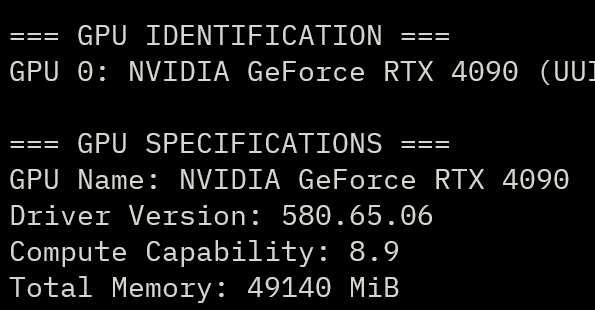

Full 48GB VRAM capacity recognized by NVIDIA drivers and system tools. Complete compatibility with CUDA, PyTorch, and TensorFlow frameworks OUT OF THE BOX.

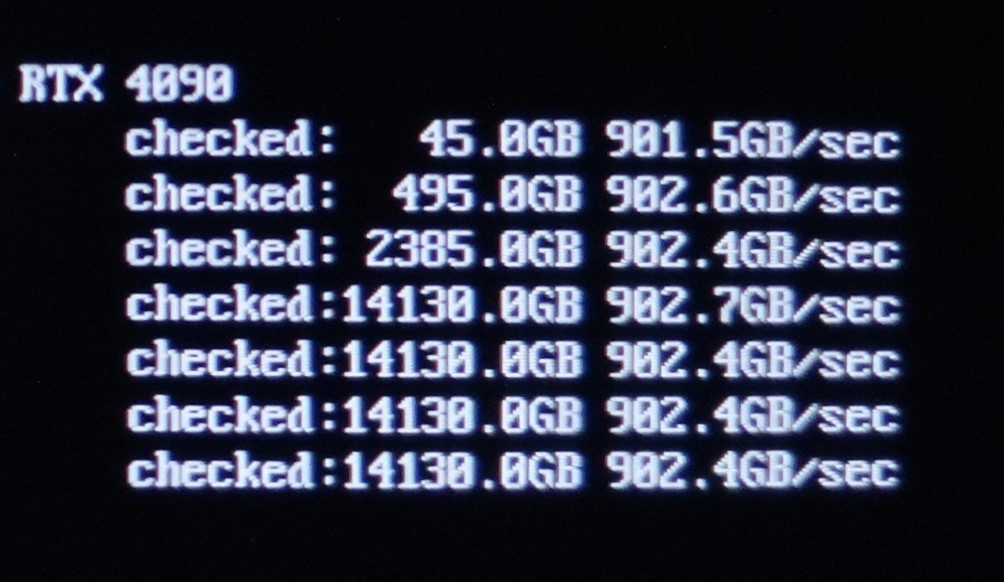

Full 900 GB/s bandwidth maintained across all 48GB. No performance degradation with increased capacity. Optimal for model training.
Continuous stress testing with real AI workloads. All memory modules validated for stability under maximum load. Our benches use ComfyUI Wan2.2 video generations on 64 loop cycles, the card is then allowed to rest and cool, then another 64 to finish the 48 hour stretch.
Thermal imaging confirms optimal heat dissipation. Memory modules stay within safe operating temperatures even under full load.
Noise levels measured at 1 meter. Sound meter pointed at a single 48gb 4090 cards delta blower fan running at 70% speed. Sound is akin to white noise, not high pitched like a 1u server but an audible wooshing sound akin to a water fall.
Validated with ollama, llamacpp, ComfyUI (z-iamge, wan2.2, qwen image edit) and professional rendering workloads (blender). Zero performance loss vs stock unmodified configuration.
Throughput comparison between RTX 4090 24GB and 48GB upgrade, aswell as other GPU's, across different LLM models and context lengths.
Time-to-First-Token latency measurements showing slight response time improvements with the 48GB VRAM upgrade.
The point of this upgrade is to take bulky multi slot 4090's and make them density-friendly. We double the vram and see no performance degredation compared to a stock 4090 across AI workloads.
The increased memory capacity from 24 to 48Gb allows for larger batch sizes, reduced memory swapping, and the ability to train larger models that would otherwise require model sharding or quantization.
The 4090 blows the A6000 out of the water- its simply a newer generation. But you get the same 2 slot form factor, and 2u server compatibility. This optimized 4090 allows your team to work with cutting-edge models that push the boundaries of what's possible with budget concious scalable hardware.
When you're investing in premium GPU upgrades, you want assurance that you're working with experts who deliver exactly what they promise.
Located in the continental United States since 2021. All upgrade and rework is done within the US. No overseas shipping delays, language barriers, customs complications, or tariffs/duty fees. Direct phone support with native English speakers who understand your technical needs.
US facilities means faster shipping both ways. Typical 10-15 business day total turnaround vs 4-6 weeks from overseas. Express services available for priority requests.
Speak directly with our technical team by phone. Get real answers to complex questions about compatibility, performance expectations, and integration requirements. No automated ai chatbots or overseas call centers.
We exclusively use full AD102-300-A1 cores - never lower-performance D variants. Our technical experience ensures you get exactly the performance specifications we advertise, backed by comprehensive testing and validation.
Years of experience with GPU repairs, modifications, and BGA rework. Industry-standard equipment, NVIDIA specification compliance, and rigorous QA processes. Every repaired or upgraded card comes with a detailed validation report.
Full transparency with nvidia-smi screenshots, thermal imaging, and performance validation. You get exactly the 48GB upgrade we specify - guaranteed.
Speak with our technical team directly about your specific requirements, compatibility questions, or custom configurations.
Get Technical SupportProfessional upgrade service with 90-day warranty
